Together, Then Apart: Balancing Alignment and Distinctiveness for Multimodal Survival Analysis

Wenjing Liu^1,2,* Qin Ren^1,* Wen Zhang^1,3 Yuewei Lin⁴ Chenyu You¹

¹Stony Brook University ²Stanford University ³Johns Hopkins University ⁴Brookhaven National Laboratory

^*Equal contribution

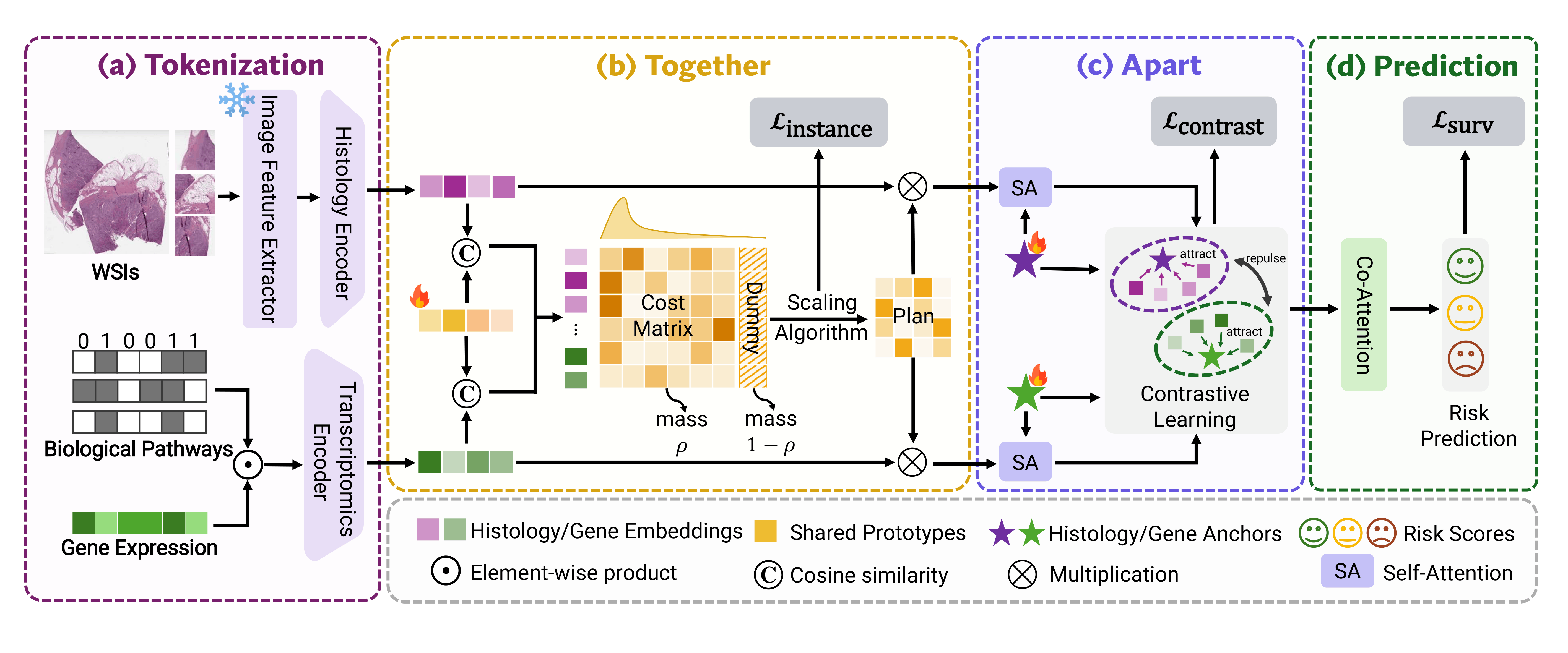

TTA overview. Together learns shared prognostic structure across histology and genomics. Apart preserves complementary modality-specific evidence for survival prediction.

News

[Jun 2026] Paper accepted at ECCV 2026.

Overview

Learning shared prognostic signals and preserving modality-specific evidence are equally important for effective multimodal survival modeling.

Existing methods often favor cross-modal alignment, risking over-alignment collapse that obscures modality-specific evidence. TTA balances the two by aligning shared structure and preserving what remains distinct.

TTA combines three complementary strengths:

Together. Learn shared prognostic structure across histology and genomics.
Apart. Preserve complementary modality-specific evidence after alignment.
Effective and interpretable. Improve survival prediction across five TCGA cohorts and reveal meaningful cross-modal patterns.

Method

Given a patient's pathology WSI and gene-expression profile, TTA follows four steps: a. Tokenization; b. Together for shared-prototype alignment; c. Apart for modality preservation; d. Prediction.

Together: shared-prototype UOT alignment

Map histology and genomics to the same prototype bank, which serves as a common coordinate system. Compute assignments with joint UOT under relaxed prototype-side marginal constraints.

Prototype-side relaxation. Here, \(Q\) denotes token-to-prototype transport and \(C_n\) its cost matrix for patient \(n\). We fix the token-side marginal \(a\) and relax the prototype-side marginal \(b\) with KL divergence:

\[ Q^\star =\arg\min_{Q\ge 0}\quad \langle Q,C_n\rangle +\gamma\,\mathrm{KL}\!\left(Q^\top\mathbf{1}\,\middle\|\,b\right) \quad \mathrm{s.t.}\quad Q\mathbf{1}=a. \]

This allows patient-dependent deviations while preventing the plan from collapsing onto a few dominant prototypes.

Curriculum on transported mass. We use \(\rho\) to control the mass assigned to real prototypes, while the remaining mass is absorbed by a sink:

\[ \begin{aligned} b_\rho=\tfrac{\rho}{K}\mathbf{1}_K,\qquad Q_\rho^\star &=\arg\min_{Q\ge 0}\quad \langle Q,C_n\rangle +\gamma\,\mathrm{KL}\!\left(Q^\top\mathbf{1}\,\middle\|\,b_\rho\right)\\ &\mathrm{s.t.}\quad Q\mathbf{1}\le a,\qquad \mathbf{1}^\top Q\mathbf{1}=\rho. \end{aligned} \]

Small \(\rho\) keeps assignments conservative early in training, while larger \(\rho\) enforces more decisive matching.

Apart: anchor-guided modality preservation

Use modality-specific anchors and contrastive regularization to retain modality identity after alignment.

We append each modality anchor to its prototype tokens, refine them with lightweight self-attention, and apply contrastive regularization to maintain separation.

Main Results

TTA consistently outperforms multimodal baselines, achieving the best Overall C-index of 0.693 with a +2.6% gain over MMP. It ranks first on BRCA, STAD, and KIRC. Results are 5-fold mean ± std.

Model	BRCA	BLCA	STAD	CRC	KIRC	Overall
MCAT	0.650 ± 0.096	0.623 ± 0.055	0.528 ± 0.112	0.579 ± 0.134	0.699 ± 0.121	0.615
CMTA	0.687 ± 0.077	0.622 ± 0.056	0.539 ± 0.076	0.568 ± 0.102	0.711 ± 0.121	0.625
MOTCat	0.717 ± 0.058	0.631 ± 0.059	0.576 ± 0.075	0.598 ± 0.128	0.708 ± 0.109	0.646
SurvPath	0.696 ± 0.061	0.619 ± 0.051	0.555 ± 0.133	0.588 ± 0.134	0.742 ± 0.101	0.640
PIBD	0.683 ± 0.056	0.661 ± 0.034	0.552 ± 0.054	0.582 ± 0.077	0.732 ± 0.139	0.642
MRePath	0.703 ± 0.036	0.651 ± 0.060	0.579 ± 0.062	0.639 ± 0.101	0.743 ± 0.112	0.663
MMP	0.724 ± 0.067	0.640 ± 0.050	0.594 ± 0.066	0.634 ± 0.118	0.743 ± 0.133	0.667
LD-CVAE	0.709 ± 0.047	0.676 ± 0.035	0.589 ± 0.083	0.602 ± 0.120	0.751 ± 0.139	0.665
TTA (Ours)	0.726 ± 0.039	0.662 ± 0.079	0.613 ± 0.079	0.685 ± 0.131	0.778 ± 0.117	0.693

Ablation Study

Ablations confirm that Together and Apart are complementary: either stage improves Overall C-index, while combining both yields a +5.0% gain.

Together and Apart stages

Together	Apart	BRCA	BLCA	STAD	CRC	KIRC	Overall
		0.682 ± 0.082	0.660 ± 0.063	0.558 ± 0.071	0.561 ± 0.170	0.756 ± 0.124	0.643
✓		0.675 ± 0.078	0.682 ± 0.067	0.582 ± 0.043	0.587 ± 0.177	0.784 ± 0.088	0.662
	✓	0.683 ± 0.034	0.651 ± 0.077	0.585 ± 0.099	0.625 ± 0.145	0.785 ± 0.098	0.666
✓	✓	0.726 ± 0.039	0.662 ± 0.079	0.613 ± 0.079	0.685 ± 0.131	0.778 ± 0.117	0.693

Shared prototypes and joint UOT

Shared prototypes and joint UOT jointly improve Overall C-index by +1.2%, showing that a common prototype geometry and unified transport plan align cross-modal evidence more coherently.

Shared Prototypes	Joint UOT	BRCA	BLCA	STAD	CRC	KIRC	Overall
		0.755 ± 0.025	0.671 ± 0.025	0.594 ± 0.063	0.609 ± 0.199	0.780 ± 0.108	0.681
✓		0.713 ± 0.034	0.662 ± 0.081	0.605 ± 0.081	0.672 ± 0.110	0.768 ± 0.130	0.684
✓	✓	0.726 ± 0.039	0.662 ± 0.079	0.613 ± 0.079	0.685 ± 0.131	0.778 ± 0.117	0.693

Anchor refinement and contrastive regularization

Anchor refinement and contrastive regularization work best together, improving Overall C-index by +3.1% while preserving modality-specific structure.

Anchor Refinement	Contrastive Regularization	BRCA	BLCA	STAD	CRC	KIRC	Overall
		0.675 ± 0.078	0.682 ± 0.067	0.582 ± 0.043	0.587 ± 0.177	0.784 ± 0.088	0.662
✓		0.694 ± 0.048	0.648 ± 0.066	0.598 ± 0.099	0.636 ± 0.155	0.771 ± 0.122	0.669
	✓	0.688 ± 0.072	0.678 ± 0.053	0.589 ± 0.032	0.627 ± 0.134	0.778 ± 0.083	0.672
✓	✓	0.726 ± 0.039	0.662 ± 0.079	0.613 ± 0.079	0.685 ± 0.131	0.778 ± 0.117	0.693

Prototype-Centered Interpretability

The learned prototype structures reveal interpretable cross-modal patterns associated with clinical outcomes. Case-level visualizations show representative WSI patches and structured hallmark pathway signals associated with shared prototypes.

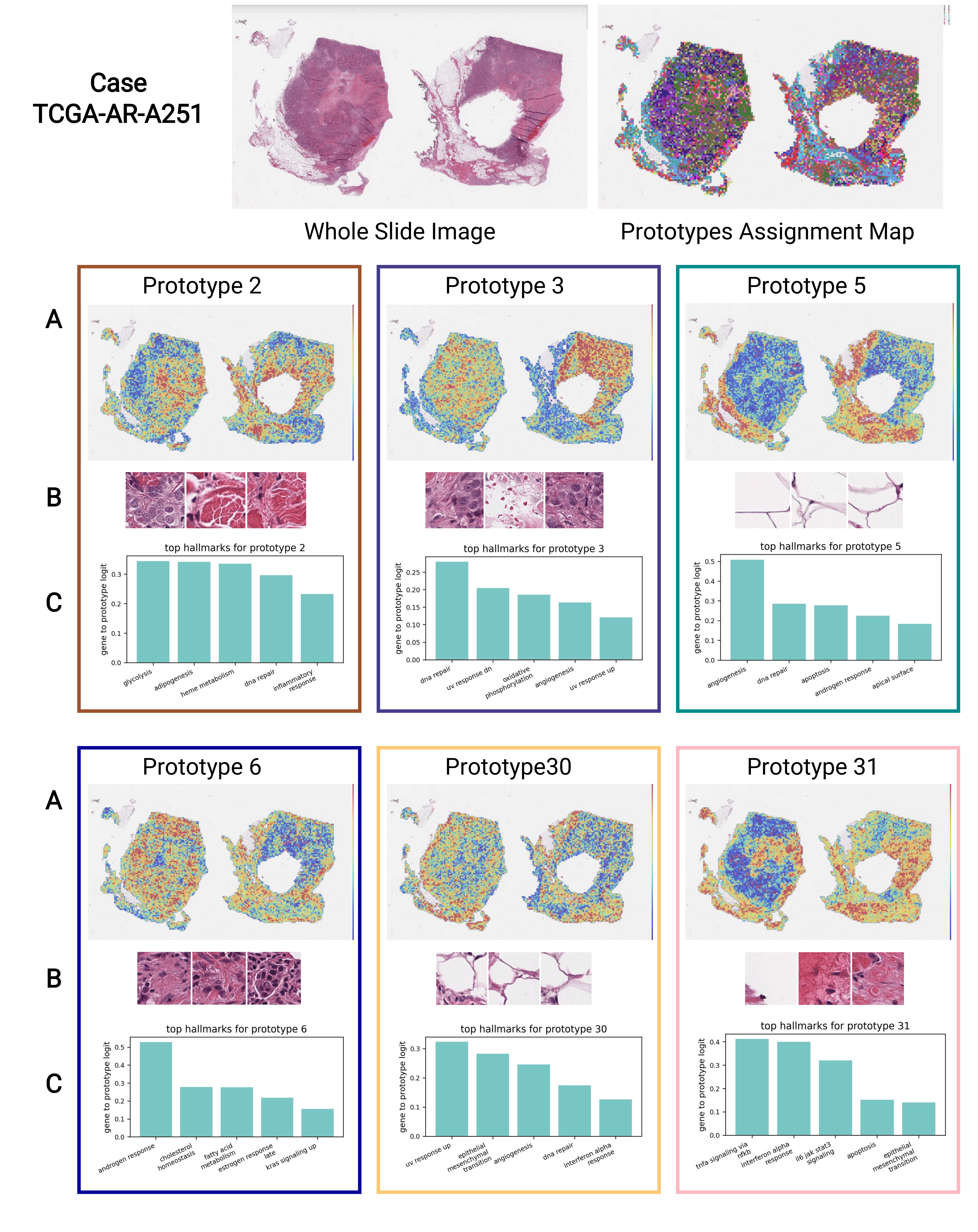

Prototype-centered visualization for TCGA-AR-A251

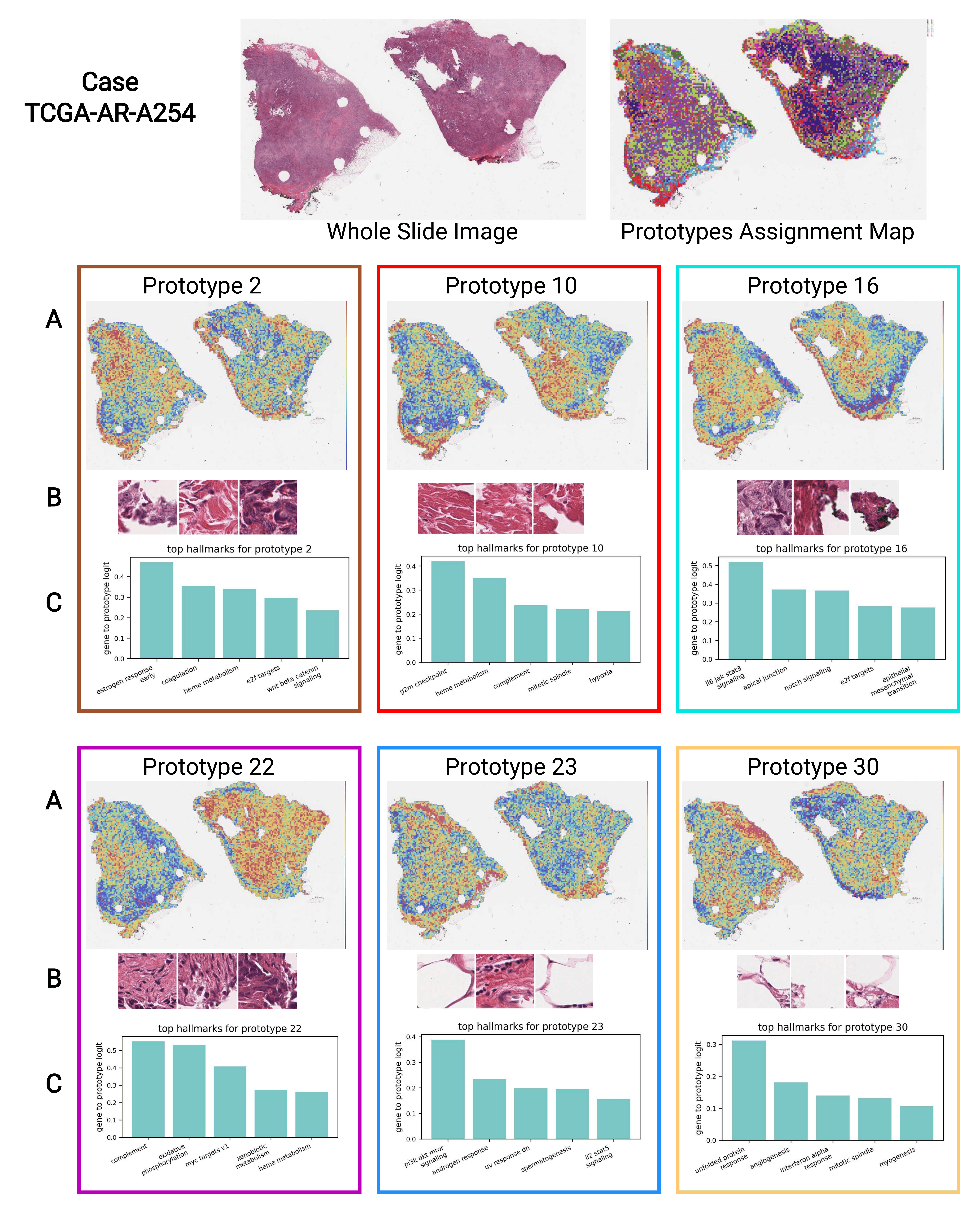

Prototype-centered visualization for TCGA-AR-A254

BibTeX

@inproceedings{liu2026together,
  title     = {Together, Then Apart: Balancing Alignment and Distinctiveness for Multimodal Survival Analysis},
  author    = {Liu, Wenjing and Ren, Qin and Zhang, Wen and Lin, Yuewei and You, Chenyu},
  booktitle = {Proceedings of the 19th European Conference on Computer Vision},
  year      = {2026}
}
